12V to 120V Inverter

---

Have you ever wanted to run a TV, stereo or other appliance while on the road or camping? Well, this inverter should solve that problem. It takes 12 VDC and steps it up to 120 VAC. The wattage depends on which tansistors you use for Q1 and Q2, as well as how "big" a transformer you use for T1. The inverter can be constructed to supply anywhere from 1 to 1000 (1 KW) watts. Important: If you have any questions or problems with the circuit, see the forum topic linked to in the Notes section. It will answer all your questions and provide links to many other (and better) inverter circuits.

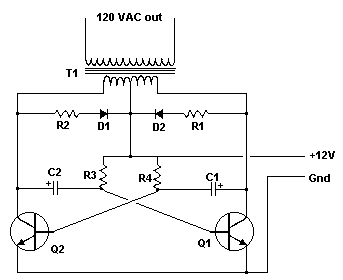

Schematic

Parts

Part	Total Qty.	Description	Substitutions
C1, C2	2	68 uf, 25 V Tantalum Capacitor
R1, R2	2	10 Ohm, 5 Watt Resistor
R3, R4	2	180 Ohm, 1 Watt Resistor
D1, D2	2	HEP 154 Silicon Diode
Q1, Q2	2	2N3055 NPN Transistor (see "Notes")
T1	1	24V, Center Tapped Transformer (see "Notes")
MISC	1	Wire, Case, Receptical (For Output)
